Automatic blow molding machine

Additional information

Output (800ml reference)

2,000, 4,000, 6,000 bottles per hour

Description

Cooling water circulation system:

There is a cooling water channel under the heating box.When the preform is heated,

the cooling water channel is used to block the heat of the lamp avoiding preform mouth

deformation.Another cooling water channel for cooling the mold, which improves the product cavity of the whole machine.

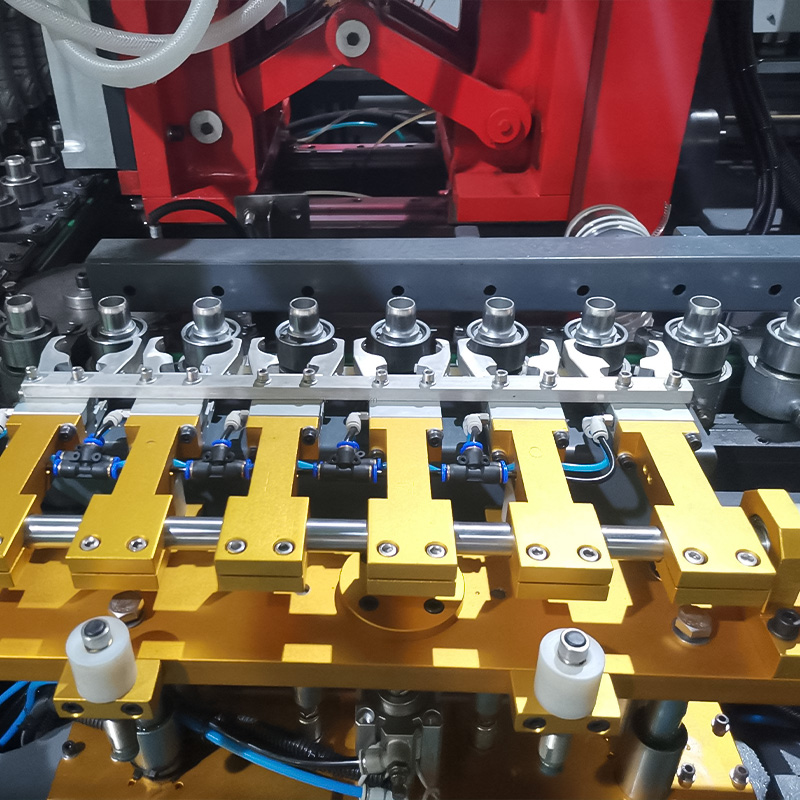

Servo system:

The heating chain is driven by the servo motor to make the heating unit stable during the movement, the

positioning is fast, and the no see is small. clamping drive,servomotor control,energy saving, high speed and stability, low noise.

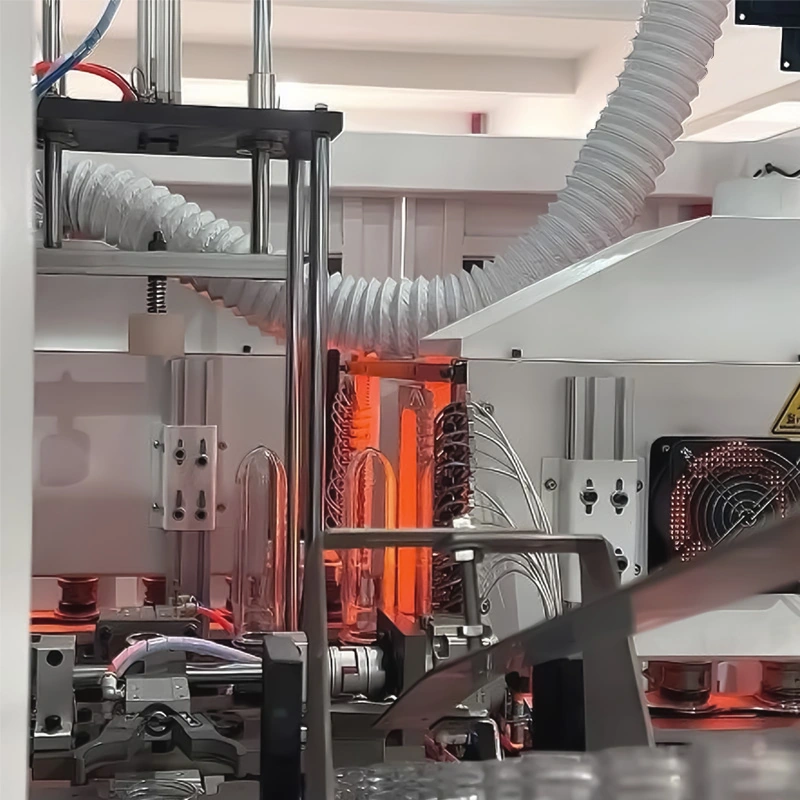

Heating oven system:

the overal structure is simple and easy to adjust, and the heating lamp holders of each layer are quickly adjusted and positioned.

Adjust the temperature control area for different bottle types to improve the efficiency of the operator to change the bottle size.

Description

Product Overview

HEYAN assembles automatic PET bottle blowing machines in Foshan, China. The current installed base runs in Southeast Asia, Africa, the Middle East, and Europe.

The machines blow beverage bottles, edible oil containers, cosmetic and pharmaceutical packaging, and custom shapes. Bottle volume, shape, and output target are confirmed before assembly starts.

What the Machine Does

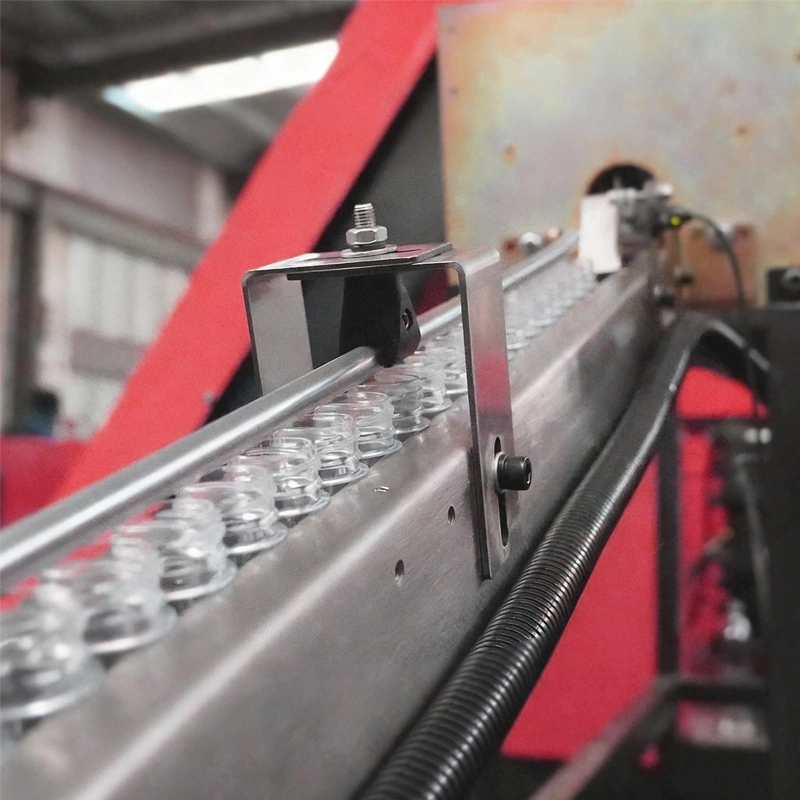

  • Preform feeding, heating, blowing, and discharge run without operator intervention.
  • Heating and pneumatic power draw depends on cavity count and bottle design. Exact kW confirmed during assessment.
  • Bottle quality varies within confirmed tolerances across cavities under standard conditions.
  • Mold and machine parameters are set per bottle size and shape before production starts.
  • Emergency stops, door interlocks, and overload protection are standard.
  • Touch-screen panel stores up to 50 recipes (depending on configuration) and logs fault history.

Typical Specifications (Reference)

Model SeriesBottle VolumeOutput Range (bottles/hour)Machine Dimensions (mm)Power (kW)
2-cavity100ml–2L2,000–2,5001,900×710×1,75020
4-cavity300ml–2L4,000–6,0002,200×700×1,60023
6-cavity500ml–2L6,000–9,000Contact for layout30

Exact specifications depend on bottle design, preform weight, and neck finish. Contact us for a tailored proposal.

Applications

  • Mineral water and beverage bottles
  • Edible oil and condiment containers
  • Cosmetic and personal care bottles
  • Pharmaceutical and medical packaging
  • Custom-designed plastic bottles

What You Get

  • Machine installation and commissioning
  • Preform and bottle design consultation
  • Operator training and maintenance guidance
  • Spare parts package and after-sales support
  • Remote troubleshooting and technical assistance

FAQ

Q1. What bottle sizes and products can the machine handle?
It handles bottles from 100 ml to 2 L, including water, beverage, edible oil, cosmetic, pharmaceutical, and custom-shaped bottles. Bottle volume, shape, and output target are confirmed before assembly starts.

Q2. What output range should I plan for?
Reference output is 2,000–2,500 bottles/hour for the 2-cavity, 4,000–6,000 for the 4-cavity, and 6,000–9,000 for the 6-cavity configuration. Exact figures depend on bottle design, preform weight, and neck finish.

Q3. Do you provide installation, training, and after-sales support?
Yes. Each order includes machine installation and commissioning, preform and bottle design consultation, operator training and maintenance guidance, a spare parts package, and remote troubleshooting support.

Q4. What do you need from me to confirm compatibility?
Send your bottle drawing, target output, and factory layout. We confirm heating and pneumatic power draw, cavity count, and recipe settings before assembly begins.

Selection Guide

Three steps to a confirmed configuration:

  1. Define your daily output first; this decides cavity count (2/4/6).
  2. Confirm bottle volume and shape; this determines heating zones and mold design.
  3. Send factory layout and utilities (power, air supply); we confirm footprint and connection requirements.

Delivery & After-Sales Support

  1. Design and compatibility confirmation — drawing, output, and layout review.
  2. Assembly and factory test — machine built and tested against the confirmed parameters.
  3. Packing and shipping — export packing with spare parts package.
  4. Installation & commissioning on site — with operator training.
  5. After-sales — remote troubleshooting and maintenance guidance.

Ready to discuss your project? Send your bottle drawing, target output, and factory layout. We will confirm compatibility and return a detailed proposal.

Request a Quote →
Chat on WhatsApp

Genuine Parts & Global Footprint

Every HEYAN blow molding unit ships with genuine international-brand spare parts, chosen for longer service life, stable operation, and straightforward maintenance. Our machines are already running in bottling plants across Southeast Asia, the Middle East, Africa, and Europe.

Additional information

Output (800ml reference)

2,000, 4,000, 6,000 bottles per hour

Additional information

Output (800ml reference)

2,000, 4,000, 6,000 bottles per hour

Cooling water circulation system:

There is a cooling water channel under the heating box.When the preform is heated,

the cooling water channel is used to block the heat of the lamp avoiding preform mouth

deformation.Another cooling water channel for cooling the mold, which improves the product cavity of the whole machine.

Servo system:

The heating chain is driven by the servo motor to make the heating unit stable during the movement, the

positioning is fast, and the no see is small. clamping drive,servomotor control,energy saving, high speed and stability, low noise.

Heating oven system:

the overal structure is simple and easy to adjust, and the heating lamp holders of each layer are quickly adjusted and positioned.

Adjust the temperature control area for different bottle types to improve the efficiency of the operator to change the bottle size.
